Type Stereo line preamplifier
Gain 23db
Input type 6 line, 2 monitoring outputs
Bandwidth 15Hz - 100 kHz @-3dB
Sensibility 150mV
Number of blocks 1
Tubes list 1 x ECC82, 1 x ECC83
Dimensions 44 x 29 x 12.5 cm
Weight 15 kg
Consumption 20W
Linje Forforsterker håndlaget I Frankrike!
JP15 leverer en fantastisk lyd, dynamisk med et dypt og bredt lydbilde. Homogen i hele musikkspekteret, vil den levere alle deler av musikken med en konstant flyt og letthet. "Elegant" er ordet som passer best til denne forforsterkeren

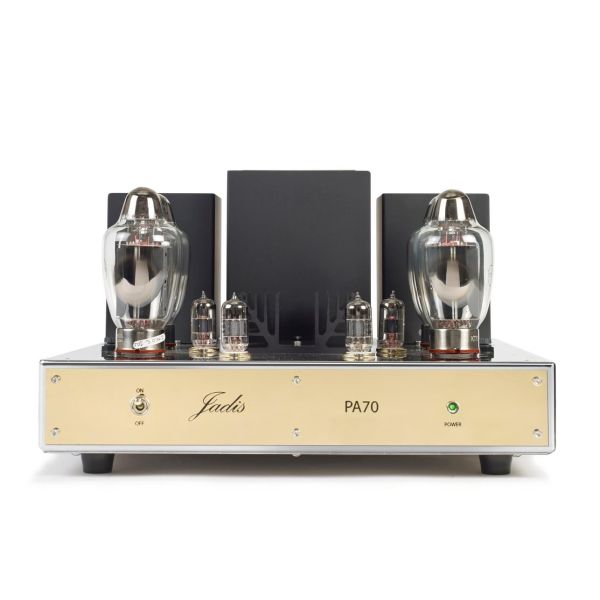

Credoet bak denne kompakte kombinasjonen er optimalisering av ytelse på et kontrollert budsjett. PA70 og JP7, nykommere til våre effektforsterkere og forforsterkere, kombinerer generøsitet, detaljer og ytelse. Alene eller i duo åpner de dørene til en verden av høykvalitetssystemer med separate komponenter
Credoet bak denne kompakte kombinasjonen er optimalisering av ytelse på et kontrollert budsjett. PA70 og JP7, nykommere til våre effektforsterkere og forforsterkere, kombinerer generøsitet, detaljer og ytelse. Alene eller i duo åpner de dørene til en verden av høykvalitetssystemer med separate komponenter.
Type Stereo line preamplifier with remote control
Gain 11.3 dB
Input type 5 lines
Bandwidth 20Hz to 70KHz @3 dB
Number of blocks 1
Tubes list 3 x ECC82
Dimensions 30 x 29 x 9.5 cm
Weight 7.5 kg
Consumption 25 VA
MkIII versjonen karakteriseres av flere forbedringer slik som, Lundahl step-up trafoer til Moving Coil trinnet, Høgspennings regulering av rør, nytt design for printkortet (dobbelsidig 70 mikron kobber) og utgangskondensator spesielt designet for Jadis.
En helt ny versjon som medfører at musikken får en fantastisk gjennomsiktighet og musikalitet.
Fra magasinet Haute Fidelite:
"Gjennomsiktighet med en ekstremt solid bass og en diskant som er spesielt glatt og smidig.
Alle instrumenter holder en perfekt klarhet med en utrolig livlighet og attack og høy troverdighet med hensyn til det harmoniske.
Til rikdommen av notene blandes en enestående flyt og en autentisk sensualitet".
SPESIFIKASJONER
Type Preamplifier MM/MC/Line with separate power supply
Gain Line input: 26dB/ MM: 59dB / MC: 80dB @ 1kHz
Input type 1x MM, 1x MC, 3x Lines
Bandwidth Ligne: 5Hz->25 KHz, Phono: RIAA
Number of blocks 2
Tubes list 6 x ECC83, 1x EF86, 1x EL84
Dimensions 26x31.8x17.1 cm Power Supply - 43 x31.8x17.1 cm M
Weight 25 kg
Consumption 40 VA
"The JPL will bring you an inherent sense of dynamic gradation, but also soundstage transparency and mastery over the elements of spatial resolution. I never felt that the Jadis was holding back or blunting the power and rise-time of orchestral peaks. I've never heard a preamp so convincingly delineate the dynamic range from soft to very loud. This is one of those rare products guaranteed to dramatically improve your system. Be prepared for a dynamic eruption that will nudge you much closer to the illusion of live music."
stereophile.com
DPMC er en MM/MC phono forforsterker med nivåkontroll. Den bruker 4 ECC83 for forforsterkeren og for RIAA-korreksjonen. Rørregulert strømforsyning sikrer stabilitet til denne enheten. MkII-versjonen har en ny intern layout for bedre isolasjon og lar også inngangsimpedansen byttes mellom 48 KOhm, 1 KOhm, 300 Ohm, 100 Ohm for en bedre match med pickupen din. Denne enheten er ideell for å utstyre en integrert forsterker med et toppmoderne phono-trinn som lar deg gjenoppdage platesamlingen din. DPMC er også tilgjengelig uten volumkontroll.
Type INTEGRATED AMPLIFIER WITH REMOTE CONTROL
Bias Automatic
Power 50 W
Input type 5 lines, 1 Bypass output, 2 speaker output ( for bi-wiring)
Bandwidth 10Hz à 36KHz
Sensibility 150 mV
Number of blocks 1
Tubes list 4xKT170, 2xECC83, 3xECC82
Dimensions 40 x 40 x 25.5 cm
Weight 40 KG
Consumption 500 VA
DESCRIPTION
For a long time now , we’ve been thinking about developing a new reference
mixing compact design and increased performances…and KT170 tube comes,
giving the starting signal of I-70 project.
This integrated is not only designed in the pure tradition with point to point wiring
and hand made transformer it’s the first to integrate several features from Jadis mono- block technology.
From power supply point of view, power stage has a full separated supply makes it totally independent. Driver and power stage separated means a power stage not influenced by the other one, so 100 available. Stabilized filament voltage eliminating inducted noise.
Huge power transformer has been designed to bring dynamic and pulse power. Due to its fully new designed output transformer I-70 works in a single push-pull ultra linear with triple load configuration and then equipped with two KT170 per channel.
KT170 is a powerful tube but we prefer to take advantage of its feature to reduce distortion instead of simply focusing on its power, by choosing a functioning point different than usual.
LISTENING:
I-70 is rich in sensation and full of emotions. Each register shows details, accuracy and depth. This integrated will move you by its shimmering tones and structured soundstage.
https://www.absolutesounds.com/pdf/main/press/hi-fi+0722_I70_209%20Jadis.pdf
Beneath its refined lines, a new JS2 generation which is a testament to a great value we are proud to perpetuate, to ensure that technological advances and high musicality coincide.
Digital section is built around a DAC sabre ES9038PRO using Hypertream technology 32 bit.
Four digital inputs, managed by a microship Microcontroller, pass through this converter. Output signal is shaped by high quality operational amplifiers (i/u conversion).
From anolog point of view, this version remains faithfull to JS2's design criteria with a full balanced tube stage and a cathode follower able to drive any preamplifier.
Input :
-SPDIF on RCA-PCM 24 bits/192 KHz
-AES/EBU on XLR - PCM 24 bits/192 KHz
-SPIDF on Toslink - PCM 24 bits/ 192 KHz
-USB type B - PCM: 24 bits / 192 KHZ - DSD : 24 bits/384 KHz
Output:
Unbalanced on RCA / Balanced on XLR
The JS5 converter bears witness to the essential link between digital innovations and analogue world, to which we are very attached.
The first DAC of a new range, result of research and innovations to offer an incredible experience.
Digital section is built around a DAC sabre ES9038PRO using Hypertream technology 32 bit.
Four digital inputs, managed by a microship Microcontroller, pass through this converter. Output signal is filtered and shaped before passing by our famous self-balanced symmetrical analog stage.
An amplification stage followed by an impedance adapter stage ensures output signal muscial quality supplying in an optimum way the following link.
To make this system works, a separate chassis contains power supply of the différents stages, analog and digital sections have their own transformer.
Each voltage of each section is separated. Rectification, filtering PI cell and regulations supply in the best way signal treatment stages.
Input :
-SPDIF on RCA-PCM 24 bits/192 KHz
-AES/EBU on XLR - PCM 24 bits/192 KHz
-SPIDF on Toslink - PCM 24 bits/ 192 KHz
-USB type B - PCM: 24 bits / 192 KHZ - DSD : 24 bits/384 KHz
Output:
Unbalanced on RCA / Balanced on XLR
3 digital outputs on regular connectors
special digital output on smb connectors
two digital fomats :
- native 16bit/44.1KHz
- src 24bit/96KHz
Power supply:
6 stabilysed independent power supply with two power transformers.
Jadis Calliope uses a decoupling by sub-chassis for CD drives that was developed by the father of Jadis and first implemented on the famous Jadis JD1.
With the Calliope, Jadis went even further… Individual components are decoupled from each other. Moreover, the drive is protected from mechanical and electrical undesired effects. There is no doubt that the Calliope is taking the most of the CD technology.
Analytical precision, rigorous tempo, thruthful timbre combined with high precision, expectional carftskill and unforgetable design, the Calliope was developed to extract the most or your favorite compact discs and bring you emotion during your listening sessions
Wonderful piece of artisan work, Hestia apply high end turntable basic principles worthy of that name with massive components uses (such as granit bloc), belt drive on inner counter plate and synchronous permanent magnet motor.
It is a suspended mass turntable on elastomer silent bloc along with massive platter with high moment of inertia.
Except for a few components, this jewel is entirely designed and hand-made in cooperation with Pierre Riffaud, famous for his high end masterpieces. All of these guarantee a great level of reliability for optimum reading conditions. A separate power supply is now avaialble as an option.
Jadis Orphée tilbyr et nytt design med frontpanel i børstet aluminium og en integrert DAC som kan brukes med USB-kontakt på baksiden av enheten.
Den optiske pickupen er mekanisk frakoblet chassiset for å unngå uønskede vibrasjoner og gir dermed bedre stabilitet under lesingen.
24-bits omformeren, den symmetriske rørutgangen samt rørstrømforsyningen er inspirert av den berømte Jadis JS1 som garanterer en flott musikalitet.
En topp moderne CD-spiller med digital inngang, som pakket inn i et nydelig design, vil gi eieren både fantastisk lyd og visuell nytelse.
Integrert rørforsterker på 2 x 40 Watt. Håndlaget i Frankrike.
Dette er en av de forsterkerne som tilbyr fantastisk lyd uansett hva du spiller. […] Det gir deg en perfekt følelse av rom, åpenhet, luftighet og en veldig dynamisk lyd. Du vil høre hver eneste tone så tydelig som mulig. Når du hører på favorittmusikken din med denne forsterkeren, opplever du det virkelig som om du var vitne til en liveopptreden...
Spesifikasjon:
- integrert forsterker med fjernkontroll og uten tonekontroll
- Bias må justeres når rør skiftes
- Effekt: 40W klasse B
- Innganger: 5 linje, 2 høyttalerterminaler for bi-wiring
- Båndbredde: 5Hz to 60kHz @-3dB
- Følsomhet:
- Rør: 4 x KT88/KT90/KT120/6550, 2 x ECC83
- Dimensjoner: 53x27x20 cm
- Vekt: 20 kg
Type Monoblock power amplifier pure class A
Bias Automatic
Power up to 45W Class-A
Bandwidth 20Hz to 46KHz @-3dB
Sensibility 0.5V
Number of blocks 2
Tubes list 4xKT88/KT120/6CA7/KT150/KT170, 2XECC82 / 2xECC83
Dimensions 46X21X21cm EACH
Weight 22Kg EACH
Consumption 125VA EACH
Mono effektforsterker med KT150 rør og 45 watt klasse A. Håndlaget i Frankrike.
The JA30, a pure class A 45 watt per side amplifier, is a very effective monoblock. Each tube is protected by a fuse and is self-biasing even when tubes are replaced, no adjustments are necessary (but the tubes have to be paired). Output tubes can be either KT8, 6CA7, KT120 or KT150 and the amps are designed to deliver full power at 15Hz, making for extraordinary bass.
When switching from KT150 to another type of power tube such as : EL34, 6CA7, KT88 and KT120 a small modification has to be made inside the unit.
