Type Monoblock power amplifier pure class A
Bias Automatic
Power up to 45W Class-A
Bandwidth 20Hz to 46KHz @-3dB
Sensibility 0.5V
Number of blocks 2
Tubes list 4xKT88/KT120/6CA7/KT150/KT170, 2XECC82 / 2xECC83
Dimensions 46X21X21cm EACH
Weight 22Kg EACH
Consumption 125VA EACH
Mono effektforsterker med KT150 rør og 45 watt klasse A. Håndlaget i Frankrike.

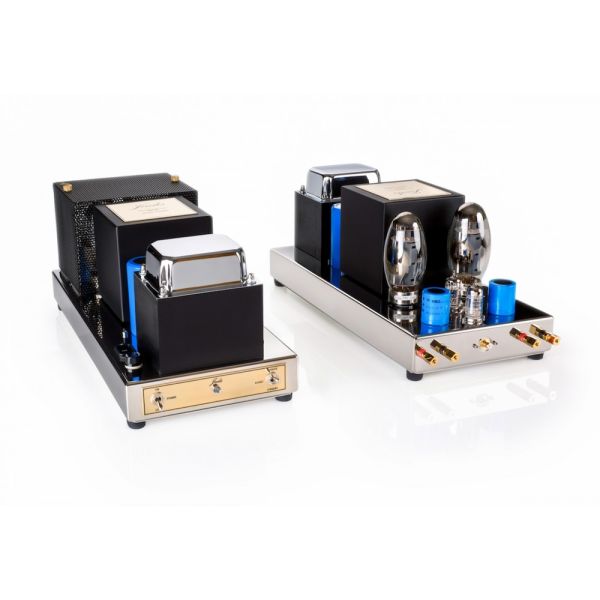

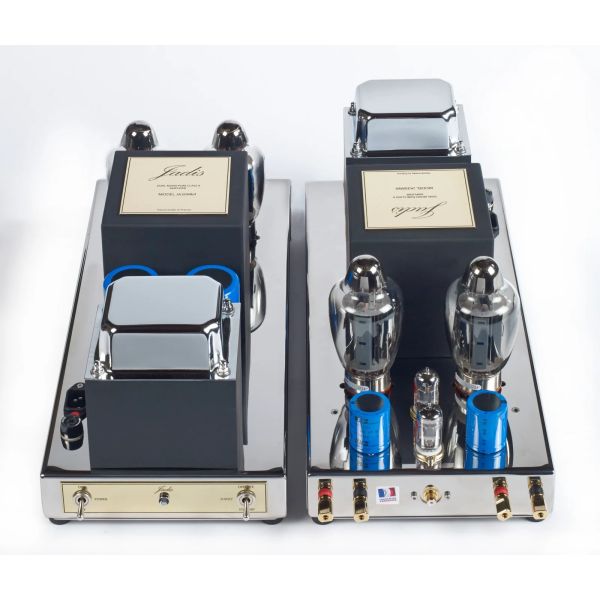

The JA30, a pure class A 45 watt per side amplifier, is a very effective monoblock. Each tube is protected by a fuse and is self-biasing even when tubes are replaced, no adjustments are necessary (but the tubes have to be paired). Output tubes can be either KT8, 6CA7, KT120 or KT150 and the amps are designed to deliver full power at 15Hz, making for extraordinary bass.
When switching from KT150 to another type of power tube such as : EL34, 6CA7, KT88 and KT120 a small modification has to be made inside the unit.
